01
Scalable Stage LED Display Cabinets
500 × 500 and 500 × 1000 formats help production teams build an indoor rental LED video wall, a concert LED screen or a wide-format stage LED display around the venue.
◉ Global Delivery | Reliable LED Display Solutions for a Brighter World
RENTAL LED DISPLAY · DS SERIES
DS Series
Rental LED Display
A high-brightness outdoor rental LED display platform for concert stages, touring productions and public events—built around IP65 protection, ≥3,840 Hz refresh and durable fast-lock handling.
Fast LockQuick setup & teardown
High RefreshCamera-ready playback
Flexible Cabinets500 × 500 / 500 × 1000
Service AccessProject-led maintenance options
DS SERIES OVERVIEW
Built for brighter, tougher outdoor rental LED projects.
DS Series Rental LED Display is developed for teams that regularly build in challenging conditions: outdoor concert stages, touring routes, festivals, public activations and high-ambient-light events. It focuses on cabinet durability, dependable thermal behavior and a high-brightness LED screen output that stays clear when daylight, weather and long operating hours raise the stakes.
DS Series can be specified from fine P1.9 options through P4.81 for medium and large outdoor LED walls. Select 500 × 500 or 500 × 1000 cabinet formats around screen proportions, rigging loads and crew workflow, then confirm the appropriate brightness, IP rating and control system for the venue.
ENGINEERED FOR REPEATABLE DEPLOYMENT
DS Series performance for outdoor stages and high-frequency rental use.
02

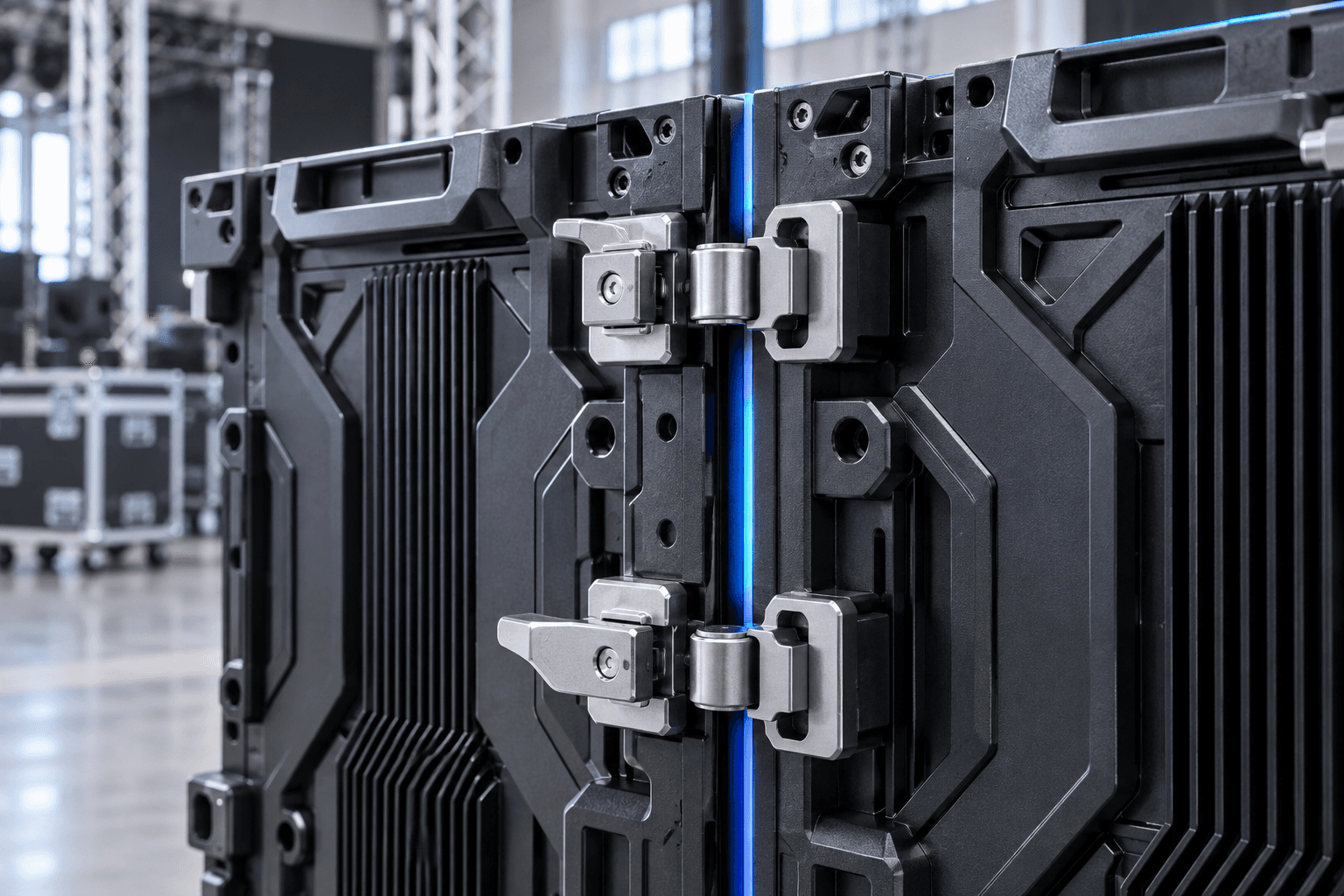

Fast-Lock Touring Workflow
Quick-lock hardware helps rental LED display crews align cabinets rapidly, reduce installation time and protect demanding touring schedules.
03
High Refresh for Event LED Display
A ≥3,840 Hz configuration supports camera-friendly playback for live IMAG, broadcast, motion graphics and close-viewing event LED display content.
04
IP65 Outdoor Rental LED Display
For daylight-facing events, the DS Series can be specified as a high-brightness LED screen with waterproof and dustproof cabinet protection.
Hardware designed for faster touring builds and stable outdoor playback.
The DS Series puts the operational details first: robust fast locks, heat-dissipation pathways, weather-ready cabinet sealing and service access that supports fast changeovers. It is a rental LED screen direction for crews that must load in quickly and maintain reliable visual performance until the final cue.
TECHNICAL SPECIFICATIONS
DS Series rental LED display parameters.
DS specifications should be selected from the real operating conditions: audience distance, screen area, daytime brightness, weather exposure, rigging method, camera use and continuous run time. COREMAN confirms the final configuration during technical quotation.
Pixel pitchP1.9 to P4.81 options for close-viewing and large outdoor screens
LED typeHigh-contrast SMD LEDs selected for rental LED screen applications

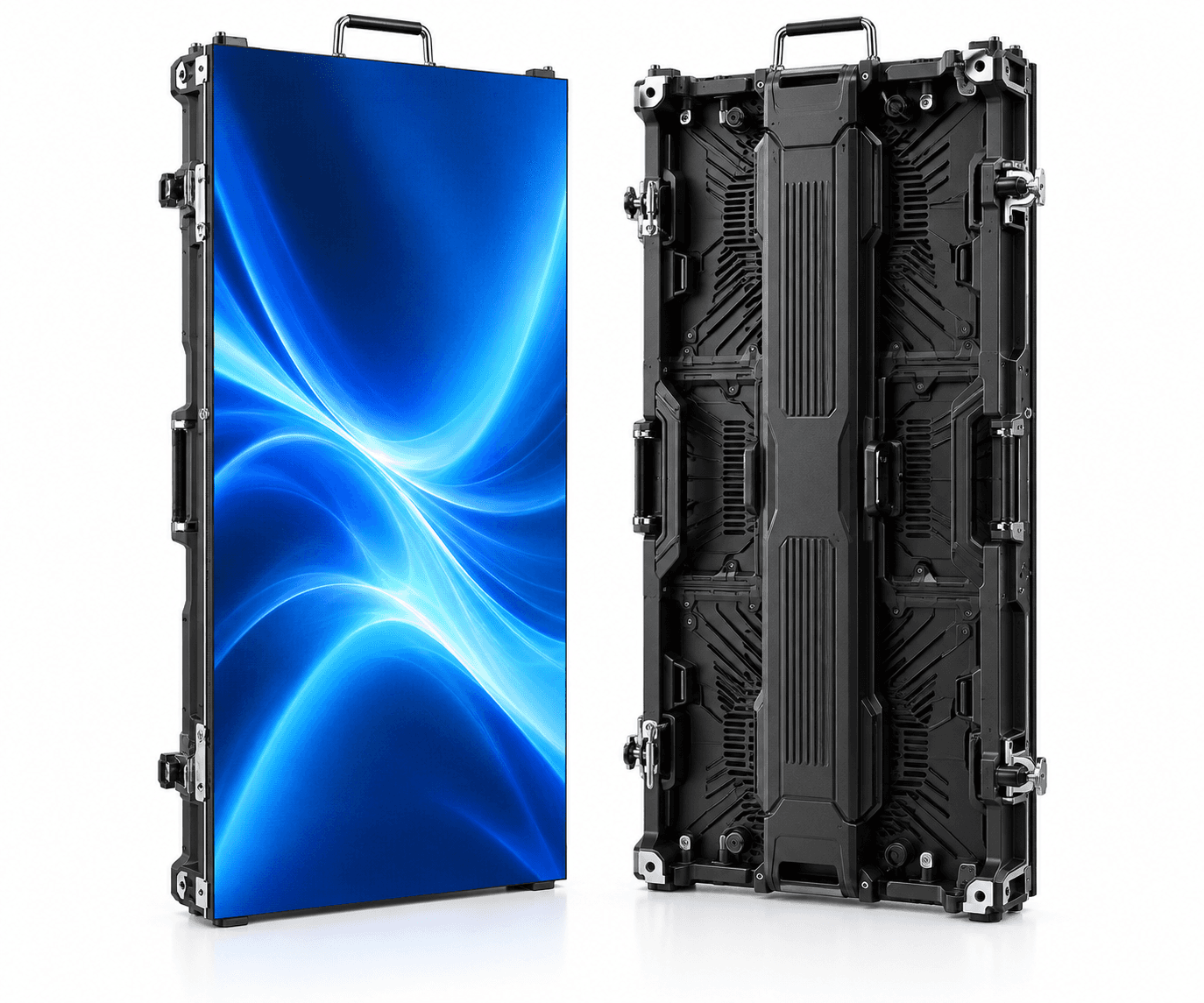

Cabinet format500 × 500 mm / 500 × 1000 mm die-cast aluminum cabinets
BrightnessUp to 6,000 nits for high-brightness outdoor rental LED display projects
Refresh rate≥3,840 Hz high refresh LED display configuration for live cameras
ProtectionIP65 waterproof LED display and dustproof LED screen cabinet direction
MaintenanceFront and rear service options, depending on project configuration
InstallationHanging, ground stacking, curved and creative rental LED wall layouts
ControlSynchronous video control with project-matched processor options
INDOOR & OUTDOOR RENTAL LED DISPLAY
High brightness, IP65 protection and stable performance for demanding venues.
DS Series is especially suited to outdoor rental LED display projects where screen visibility and cabinet protection matter at the same time. Up to 6,000 nits helps content compete with daylight, while IP65-ready waterproof and dustproof options address rain, dust and outdoor event conditions. For indoor stages, the high refresh direction supports smooth live-camera and IMAG playback.
Discuss Your Project
APPLICATIONS
DS Series for outdoor shows, touring schedules and large-audience moments.
From a one-night outdoor concert to a multi-city tour, DS Series is planned around the realities of transport, rapid deployment, high brightness and visual consistency. The same platform can support stage LED displays, event LED screens and large-format public viewing walls.
Concert Stage LED Screen
High-refresh rental LED displays for concert stages, touring shows and music festivals that need smooth camera-ready visuals.
Corporate Event LED Display
Fine-pitch rental LED video walls for keynotes, launches, conferences and close-viewing brand presentations.
Exhibition & Trade Show LED Wall
Modular rental LED video walls for exhibition booths that need fast setup and a premium visual finish.
Worship & Theater Stage Display
Camera-friendly stage LED displays for live production, worship services and theater environments.
PRODUCT GALLERY
DS Series outdoor cabinet engineering and rental-ready protection.
FREQUENTLY ASKED QUESTIONS
DS Series rental LED display FAQ.
For a DS Series recommendation, send your screen size, target brightness, operating hours, weather exposure, rigging method and event schedule to COREMAN.
What cabinet sizes are available for the DS Series rental LED display?+
The DS Series can be planned in 500 × 500 mm and 500 × 1000 mm cabinet formats. The best combination depends on the required screen size, installation method, crew workflow and whether the project needs a flat or curved rental LED video wall.
Can DS Series be used as an outdoor rental LED display?+
Yes. COREMAN can specify DS Series as an IP65 waterproof LED display and dustproof LED screen direction, with brightness up to 6,000 nits for the daylight, weather and installation conditions of your project.
Is the DS Series suitable for stage camera and live video?+
A high refresh configuration can be selected for live camera, IMAG, broadcast and fast-moving video. Tell us the camera setup and content source early so the LED screen and processor can be planned together.
Can the DS Series create a curved rental LED screen?+
DS Series cabinets can be discussed for curved rental LED screen installations where the project requires a concave or convex stage design. The radius, cabinet count and rigging or ground-stack method should be confirmed during planning.
What information do you need for an DS Series quotation?+
Please send the preferred pixel pitch, target screen dimensions, indoor or outdoor environment, hanging or ground-stack method, quantity, destination country, project date and any controller or flight-case requirements.
GET A FACTORY-DIRECT QUOTE
Build a high-brightness rental LED display with DS Series.
Share your target pixel pitch, screen dimensions, daytime or nighttime operating conditions, weather exposure, cabinet quantity and destination country. COREMAN will recommend a DS Series configuration for your stage LED display or outdoor rental LED screen project.
